Specification
| General | ||
| Dimensions | Φ 89.9 mm × 70.1 mm (3.54″ × 2.76″) | |
| Weight | 250 g | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) | |
| Power Supply | 12 V DC±15% | |
| Power Consumption | Max. 4 W | |
| Camera | ||
| Image Sensor | 1 MP CMOS image sensor | |
| Electronic Shutter Speed | 1/25 (1/30) s to 1/50,000 s | |
| Minimum Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| IR Distance | Up to 20 m | |
| Lens | ||
| Lens Type | Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm) | |
| Mount Type | M12 | |
| Angle of View | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | |
| Video | ||
| Resolution | 1296 × 732 | |
| Frame Rate | 720p@25fps/720p@30fps | |
| Day/Night | ICR | |
| Noise Reduction | >62 dB | |
| Interface | ||
| Video Interface | Switchable TVI/AHD/CVI/CVBS | |
Description

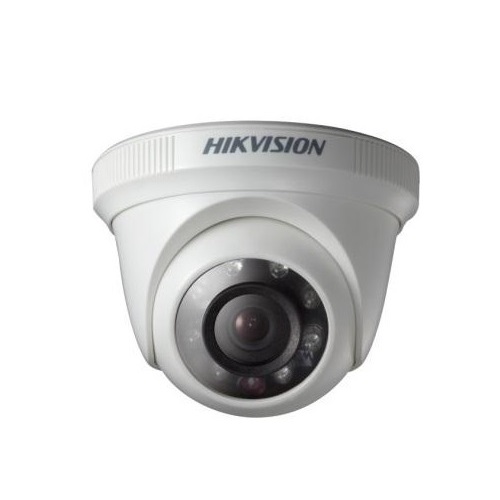

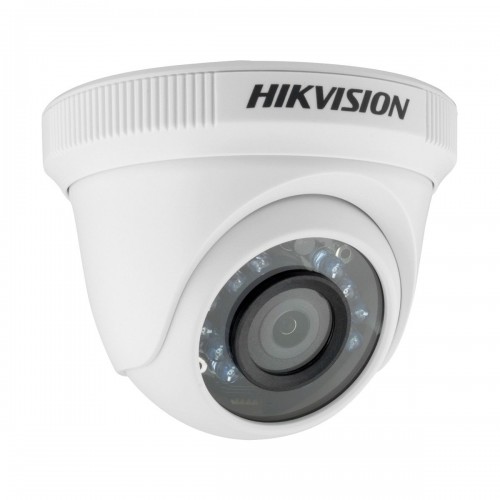

Hikvision DS-2CE56C0T-IRPF HD 720p Indoor IR Turret Camera
The Hikvision DS-2CE56C0T-IRPF HD 720p Indoor IR Turret Camera has 1MP Camera that sits in the turret position. It uses the Smart IR technology that allows it to see up to 20 meter distance. It also has 4 signal choice to choose from which are TVI, AHD, CVI, and CVBS. The cctv camera uses plastic material for its housing purpose and weighs in at approximately 250 grams. The camera uses the CMOS image sensor that allows it to have a resolution of 1920 by 1080 pixel. It uses a shutter time of 1/25 (1/30) second to 1/50,000 second. You will be able to get the PAL and NTSC signals from this camera so its up to you to choose the right one for you.
Reviews
There are no reviews yet.
